CE033A TB419 DC12v Relay Wireless Remote Control RF Switch On/off Switch + Delay Time Timer

CE033A TB419 DC12v Relay Wireless Remote Control RF Switch On/off Switch + Delay Time Timer

  • Model: CE033A+TB419
  • Availability: In stock
  • Weight: 0.05Kg
US$10.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns
Compatiable transmitter remote : https://stores.ebay.com/RF-Wireless-Electronics-Technology/Fixed-Code-Transmitters-/_i.html?_fsub=5534337015&_sid=1103009655&_trksid=p4634.c0.m322 .

Packing list:

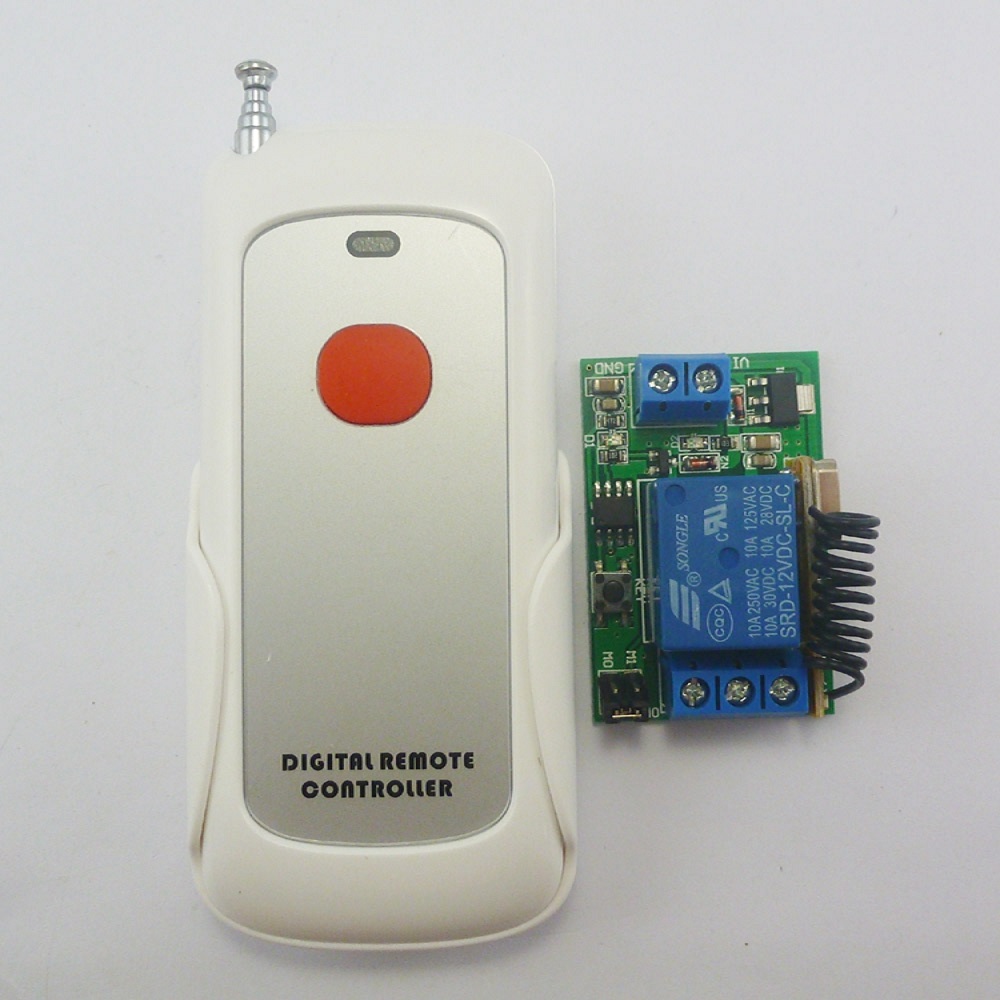

1 PCS 433M DC 5V one Channel Delay Relay
1 PCS 433M Large Power 1 Button PT2262 Remote Control(USE 12V 23A battery,Batteries not included)





Typical applications:
DC 5V Home lighting system
Remote control switch
Smart Home / Home Automation
Garage Door
Fluorescent lamp Illumination
Motorcycle Electromobile
Remote controlled gates
Security Monitoring
LED lighting
Fluorescent lamp
DC 5 DC Motor,RS360


Wiring Diagram 1:
DC 5V control circuit,Wiring diagram below. "LOAD" may be LED lamp, fans, motors and other DC 5V Electrical equipment






Wiring Diagram 2:

DC 1-48V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 5V load, need another DC 5V power supply). "LOAD" may be LED lamp, fans, motors and other DC AC equipment

Product Name : 5V Delay remote control relay Smart Home Kit 433M Multifunction ON/OFF Switch with Timing Non-locking Self-locking Inter-locking

Packing list:

1 PCS 433M DC 5V one Channel Delay Switch




receiver Features:

1 Operating voltage: DC 5V;

2 Operating Current: relays close, about 11MA; relay open,about 80MA;

3 Operating frequency: 433.92M;

4 Receiver sensitivity : -108dBm

5 Decode : learning code, can be adapted EV1527 / PT2262 and compatible remote control, you can store up to 32 remote control

6 Work mode : Non-locking (Momentary is defult),Self-locking (Toggle),Inter-locking (Latch),Delay; 1-5000 seconds adjustable delay time, minimum step 0.1 seconds

7 Size(Including housing)50*35*22mm

8 Weight(including housing) 30g

9 Relay Maximum load(Recommended<5A):10A/250VAC,10A/125VAC,10A/30VDC, 10A/28VDC,10A/12VDC





Work mode

NO : Relay normally open contact
COM : Relay common contact
NC : Relay normally closed contact
Open : NO connection COM, NC disconnect COM
Close : NO disconnect COM, NC connection COM
Momentary : Press the Transmitter button , the receiver relay is Open, release button;the relay is Close;
Toggle : Press transmitter button for 1 time , the receiver relay is Open, press button again, the relay is Close;
Latched : Press transmitter button A, the receiver relay is Open Press transmitter button B, the receiver relay is Close.
Delay : Press the Transmitter button, the receiver relay Open,After a set time delay, the receiver relay is Close;

If during the delay, press the button of Transmitter, delay start again; if the delay period, press and hold the button of Transmitter 3-4 seconds, the receiver controller stops the delay, the relay Close

Adapter remote control (learning remote control):
Under normal operating mode, LED will be lit, when receives a valid remote control (EV1527 / PT2262) button values, LED flashes

Clean code: press the key and held down, LED off, LED will light about 8 seconds later, clean code is completed (Note: After performing clean code previously stored remote control value does not exist)

Step 1 (into the learning mode): Press the key (about 1 second), LED off;
Step 2 (adapter button): Then press the utton on the remote control, LED flashes four times on, then learning the button value

Note:
Only the Non-locking (Momentary is defult),Self-locking (Toggle),Inter-locking (Latch) mode to a "clear code" and " learning " action
In the "delay" mode can only set the delay time


Delay setting:
Step 1, the mode is set to "delay" mode (jumper cap on the M1 into two rows of pins)
Step 2, press the key until the LED is off
Step 3. Click the key again, LED flashes
Step 4. Click the key again after a period of time, LED light
LED blinking time is the delay time.




Transmitter :




Features / Specifications :

1. 1 buttons;
2. High stability, SMT chip, frequency stabilization SAW, ultra-high-frequency transistor;
3: Large power;



Technical Data :
Transmitter Module No.: TB419;
Power supply : 12V 23A battery (not included ) , please buy battery from here : https://www.ebay.com/sch/i.html?_from=R40&_trksid=p2047675.m570.l1313.TR3.TRC2.A0.H0.X12V+23A+battery.TRS0&_nkw=12V+23A+battery&_sacat=0 .

Operating current: 28-33mA;
Oscillation mode: SAW resonator;
Modulation mode:ASK/OOK;
Operating frequency:433.92MHZ ;
Encoding format: EV1527 fixed code .
Transmit power : 200mW ;
