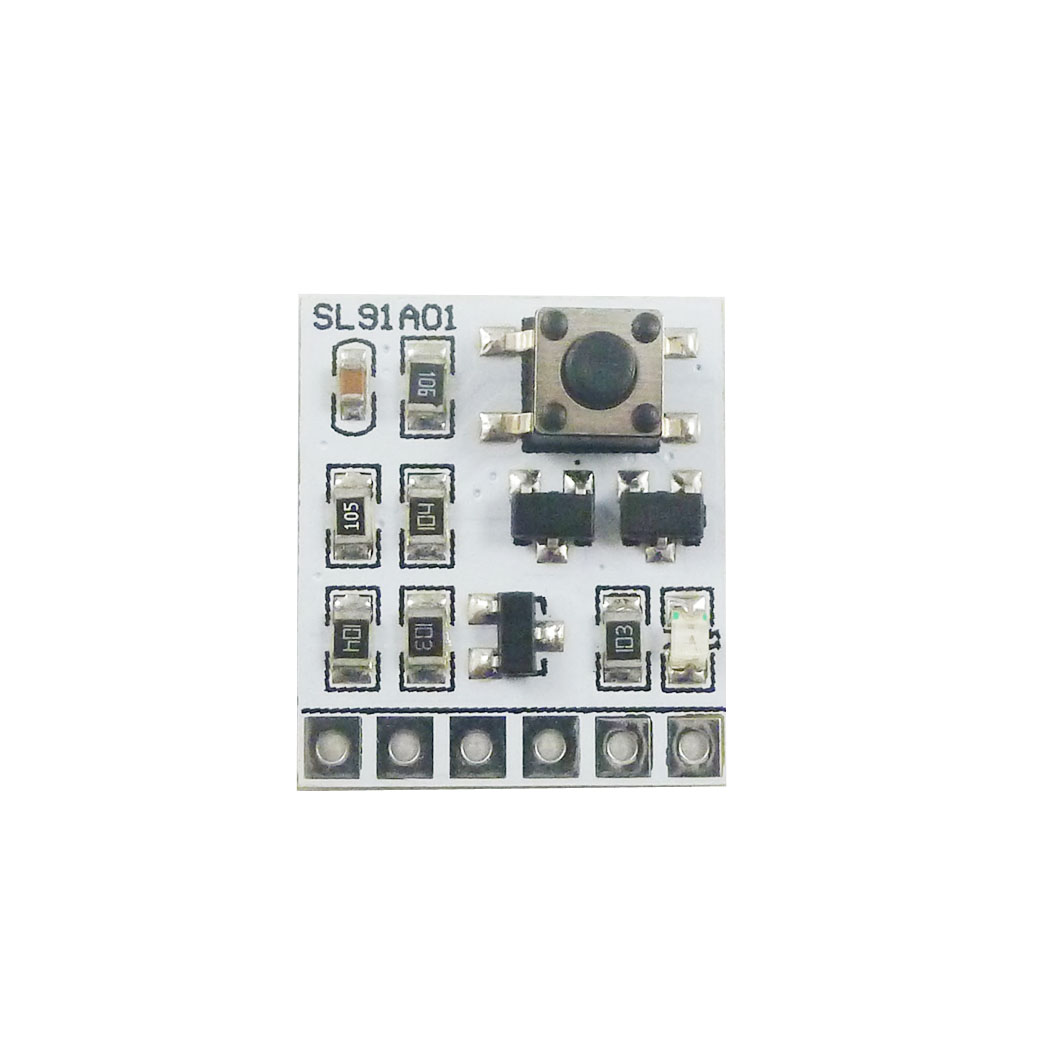

Product Name : DC 2-18V 2A Bistable self-locking Switch Board LED Controller Touch Electronic Relay Module
Packing list:
DC 2-18V Bistable self-locking switch Module
Description :
Working voltage : DC 2-18V
Load current :0-2000MA
Quiescent current: 10uA
Operating ambient temperature : -40° to +85°
Storage temperature : -65° to +125°
Size: 17.5 x 15.24 x 5mm
Weight : 1g
Module interface:
1. Vi : positive power supply (VCC)
2. G : negative power supply (GND)
3. G : negative Output (GND)
4 Vo : positive Output
5 Ti : Button port 1
6 To : Button port 2
How to use: After power on (the output may be turned off or on), click the button to turn on or off the output (the status remains unchanged until the button is clicked again)
Note:
1 When powering on, the output state may be on or off,Connecting 220-1000UF electrolytic capacitors in parallel at the input can reduce the uncertainty
Typical applications:
Automotive electronics
Industrial equipment
Motor
LED
Smart Home
Emergency lighting
MCU development board
Toy car
Solenoid valve
