Product Name: 2 Pcs Mini RS232(TTL) 1k-100K Resistance Value Measurement Module 10K 3950 NTC Thermistor Collector
Package inlcuded:

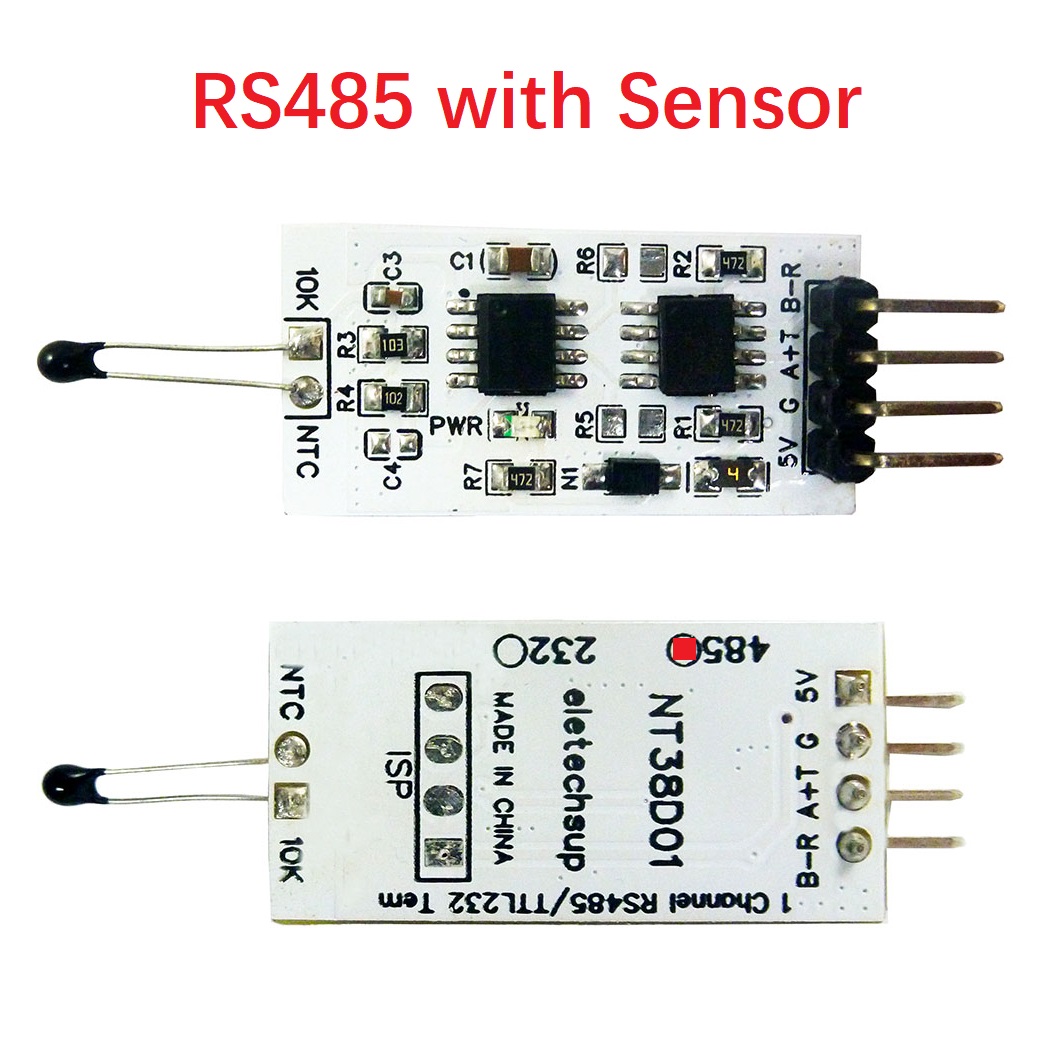

1 pcs NT38D01 RS485/TTL232 NTC Thermistor sensor converter(Please choose the version you need)
Features:
Working voltage: DC 5V(4.5-5.5V)
Working current: 10-13MA
MODBUS RTU protocol, 03 read command, 06 write command.
Serial port baud rate: 9600 (default), N, 8, 1
By modifying the 485 address, up to 247 modules can be cascaded (more than 16 please use R485 repeater)
Adapted sensor: B3950 10K 1% NTC thermistor Resistor
Temperature measurement range (using our NTC sensor): -20 ° C to +125 ° C.
Temperature measurement accuracy (using our NTC sensor): 1%.
Size: 30 X 15 X 6MM
Weight: 2g
For more information, please contact us!!!
NTC thermistor sensor
Thermostatic Controls
Industrial Systems
Thermometers
Thermally Sensitive Systems
Indoor and outdoor temperature measurement
Temperature in vegetable garden
Weather forecasting, and monitoring
Temperature in Computer Room
Warehouse temperature
